Easy hookup for your pedals.

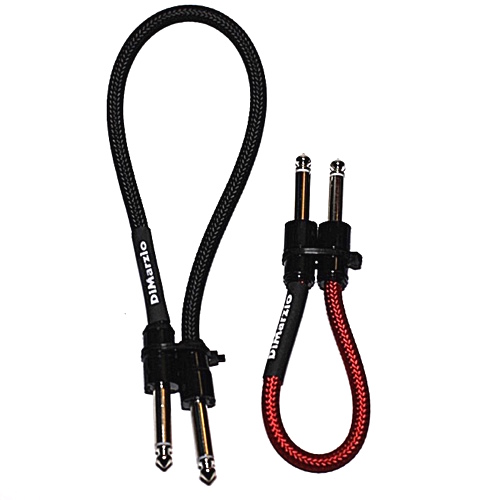

DiMarzio Pedal Board Cables allow players to connect multiple effects pedals together. Our custom low capacitance cables have a dual-layered shield consisting of an extruded carbon jacket plus a copper braid shield. This combination delivers 98% isolation from external electrical noises. For added protection, our cable is covered in a resilient nylon over braid that protects from cymbal drops and other common stage and studio damage. DiMarzio uses Switchcraft ¼” ends (made in the USA) encapsulated in a super-tough butyrate resin that permanently bonds the plug to the cable. The system is so rugged and durable that DiMarzio Pedal Board Cables carry a lifetime warranty.
They come in 6- and 12-inch lengths, and are available in both black and red.
Wire Gauge: AWG 20 (0.519 mm2)
Diameter: 0.237 in. (6.02 mm)
Insulation: Polyethylene inner with PVC outer
Capacitance: 19 pF/ft (62 pF/M) cond/cond 35 pF/ft (115 pF/M) cond/shield
Shield & Material: Copper Braid + Conductive PVC 98%
Jacket & Material: PVC + Nylon Overbraid
Resistance: 5.5 ohm/1,000 ft (18 ohm/KM)
Inductance: 0.07 µH/ft (0.2 µH/M)
Termination Method: Silver Solder
